Greensmaster® eFlex 1021 (04865)
Extremely quiet, the all-electric Toro® Greensmaster® eFlex1021 is among the quietest and most efficient walk greensmowers on the market today. Harnessing the power of lithium-ion battery technology, this mower takes electrical efficiency to a new level, allowing operators to mow up to 3252 sq.m of turf on a single charge. Additionally, a convenient LCD screen indicates an ongoing battery charge status and also displays useful information such as machine hours, diagnostics, and overall battery health. These units are designed for minimal maintenace and long, productive life saving labour and operational costs.
The Greensmaster eFlex 1021 has patented Flex suspension technology with 53cm cutting widths.
Patented Flex Suspension Technology
Flex suspension allows the cutting unit to easily follow the contours of the green and delivers a superior quality of cut. (eFlex 1021 only)
Proven Lithium-Ion Technology
Battery capacity with ample power and run time to mow over 3000 sq-meters. Balanced battery management and on-board electronics monitor the mower to automatically optimise battery life.
Tool-free Cutting Unit Removal
Changing cutting units is simple with the tool-free quick-change levers. Easily swap out cutting units in seconds and minimise maintenance downtime.
EdgeSeries™ Reels
Dual Precision Adjustment (DPA) cutting units – featuring Toro’s EdgeSeries™ reels combine to deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance with improved reel edge retention. Learn More.
Easy-Reach Adjustable Throttle
All operator controls are within easy reach to perfect the mowing process, improve cut consistency, and enhance control – in normal and tight turn-around situations.
Telescoping Handle
Engineered to accommodate operators of different heights, for mowing in a natural upright position. Leads to less fatigue and a superior cut. Adjustable to 5 distinct handle positions.
Handle Isolation Mounts
Two rubber grommets eliminate minor oscillations in Height-of-Cut caused by walking strides. Delivers a consistent cutting height on each and every green for optimal playability.

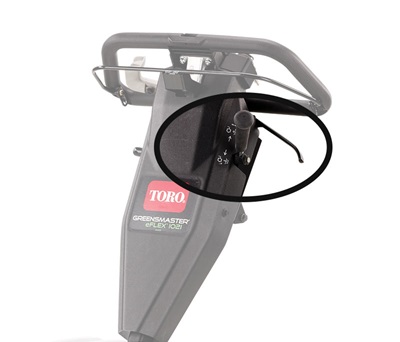

Reel Engagement Lever
Convenient, easy to reach location to engage reel from the operator position.
Durable Gear Drive Transmission
Provides long life and best-in-class transmission durability. Lubricated for life, no grease points.
Dual Function Bail
A single bail combines safety and ease-of-operation. Convenient operation allows the mower to slow down or come to a full stop during turn-arounds without disengaging traction to line up for next mowing pass. Also ideal when using turn-around mats to preserve collar health.
Power Source
Electric
Ground Speed - Forward
0 - 8.5 km/h
Hi-Lo Clip Rate Knob
Clip frequency can easily be changed in the field to mow the perimeter, collars etc. The quick-change feature also can be locked out for added control.
Traction Release Lever
Disengage the traction with a simple lever twist. Getting around the shop has never been easier!
Handle
Loop handle with telescoping adjustment of 5" (12.7 cm) total travel, rubber isolated to minimize operator influence during mowing
Height of Cut Range
For Greens: (Spacer Position One) 1.5 mm - 6 mm
For Tees: (Spacer Position Two)3 mm - 9 mm
High Height of Cut Kit: 9 mm - 25 mm
Kickstand
Standard
Main Frame/Chassis
Fully modular design allows quick disassembly for service/maintenance of all major components
Mowing Speed
3.2 - 5.6 km/h
Number of Blades
11, 14
Optional Accessories
LED Light Kit, Cutting Unit Light Kit Mount, Push Broom Kit, Wheel Kit, Backlap Access Kit, Wireless Hour Meter, High Height of Cut Kit, Charger, Replacement Battery
Parking/Service Brakes
Service/parking - band type
Power Train (Engine Description)
Lithium-Ion battery pack – nominal 51.4-Volt 29.4 A-Hr (1.51 kW-hr) with integrated battery management system utilizing CAN communication with the machine controller and charger. Single battery affixed to unit and charged onboard. Brushless permanent magnet DC motor with integral motor controller and helical gear reduction
Reel Diameter
12.7cm
Rollers
Front Roller: Optional – must be ordered. Rear Roller: Aluminum full roller 2" (5.1 cm) diameter with sealed bearings
Starting
Key Start
Tyres - Rear
Optional - Two quick-detachable pneumatic tyres (7.62 cm x 8.255 cm - 15.24 cm)
Traction Drive
Gear
Traction Drive (System)
Permanent Magnet DC motor directly coupled to a fully gear-driven transmission with traction differential and traction disconnect to ease movement during service/maintenance operations. Interchangeable drum drive gear cases
Traction Drum
Tapered traction drum for improved after cut appearance
Weight
132.5 kg with 11-blade cutting unit and aluminum Wiehle roller
Width of Cut
53.3 cm
Disclaimer
*Dependent on machine configuration, turf conditions, and battery age

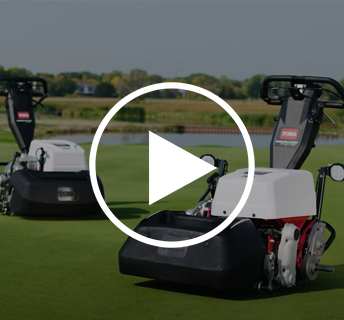

Greensmaster® e1021/eFlex® 1021
| Blade | EdgeSeries™ DPA radial reels |
| Charger | Voltage and current controlled with CAN communication to manage battery health. Complies to max voltage and current limits directed by the battery management system. Off-board high efficiency 650W smart charger.
|
| Clip Frequency/Backlapping | Quick-change dual-speed gear drive, combined with positive drive belt - four possible reel speed/clip settings. Standard backlapping |
| Collection System Volume | Molded polyethylene with integrated graphics highlighting overlap guidelines, vented for high-efficiency collection |
| Controls | Start/On/Off (‘ignition’) switch, LCD Information Center (reports multiple parameters including hours, battery life, faults, diagnostics, backlap control, etc.) throttle, dual function traction/safety bail, reel engage lever, service/parking brake lever, optional light switch |
| Cutting Unit Accessories | 11, 14-Blade Flex ES Cutting Unit, Front and Rear Roller Options, Bedknife Options, Groomer Options, Scraper Options, Tools and Maintenance Options |
| Cutting Unit Suspension | Flex |
| Cutting Unit Type/Configuration | Semi-floating cutting unit separable from drive unit, pivoting around reel centerline (pitch axis) and pivoting around bedknife centerline side to side (roll axis) |
| Drivetrain | Electric |
TransPro 200
To safely transport the new walk greens mowers, Toro is excited to announce the introduction of the all-new TransPro 200 walk greens mower trailer.
The TransPro 200 is a purpose-built trailer to transport 1 or 2 walk greens mowers safely and securely. The new trailer uses a combination of adjustable roller pockets, rubber mats, and transport wheel/donut retainers to securely retain mowers in place helping keep precise mower adjustments intact.
The configuration of the trailer starts with the base unit (model 04239) and a ramp kit (model 04219) or rail kit (model 04229) is added to complete the configuration. Once configured, the trailer can be adjusted for either 18” (46cm) or 21" (53cm) wide mowers without the need for additional parts for kits.
The hitch design allows for 6cm of hitch height adjustment for optimisation with the tow vehicle. The adjustable hitch and lengthened ramps and rails make mower loading easy.
Hitching and unhitching from the tow vehicle is improved over other trailers with a release mechanism that utilises the weight of the trailer to release the retention pin when the tongue lever is actuated. The lever is also a convenient handle for moving around the trailer, loaded or unloaded.
| Download | Type | Information |
|---|---|---|
| Greensmaster eFlex 1021 Sell Sheet |
