Greensmaster® Flex™ 2120 (04044)

Greensmaster® Flex™ 2120 (04044)
Greensmaster® Flex™ 2120 (04044)


The new Greensmaster® Flex™ 2120 walk greens mower continues the legacy of innovation and continuous improvement with the addition of a new multi-disk wet clutch for easy operation, basket hanging changes for better grass collection and the new EdgeSeries™ cutting units with new reel material, new reel geometries and new manufacturing processes for enhanced reel to reel consistency and durability.

The single belt drive transmission is simple and reliable – focused on delivering a consistent cut on every pass and on every surface. Add improved productivity and simplified service to the list and you’ll quickly understand why the Greensmaster® Flex™ promises to make the best walk-behind reel mowers even better.

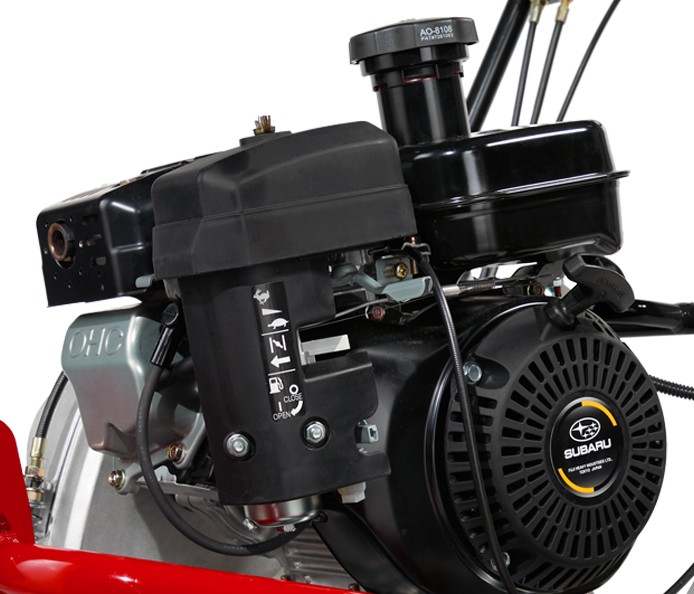

Powerful Subaru® Industrial Engine

Powerful Subaru® Industrial Engine

The reliable high-tech Subaru® heavy-duty industrial engine is precision manufactured for high torque output at low rpm's and for easy starting. The engine has the power necessary to accomodate groomers, light kits, and all of your most challenging greens cutting applications.

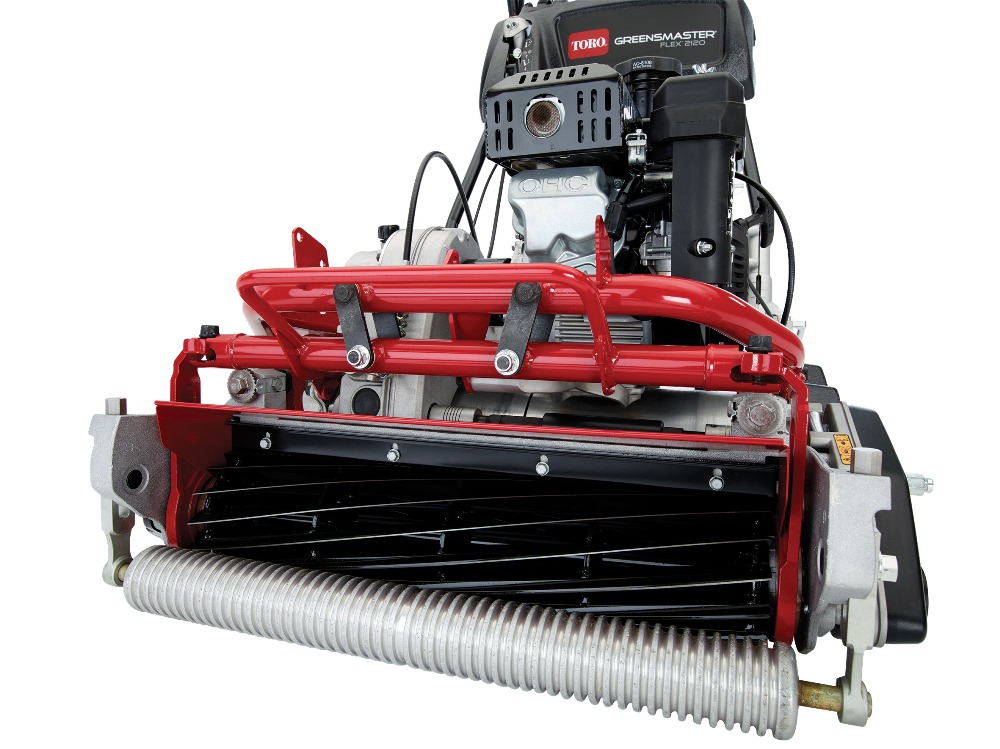

Dual Precision Adjustment (DPA) Cutting Units

Dual Precision Adjustment (DPA) Cutting Units

Precision machined cutting units maintain levelness and hold adjustments. Dual Precision Adjustment (DPA) cutting units allows quick bedknife to reel adjustment – featuring Toro’s all new EdgeSeries™ reels combine to deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance with improved reel edge retention.

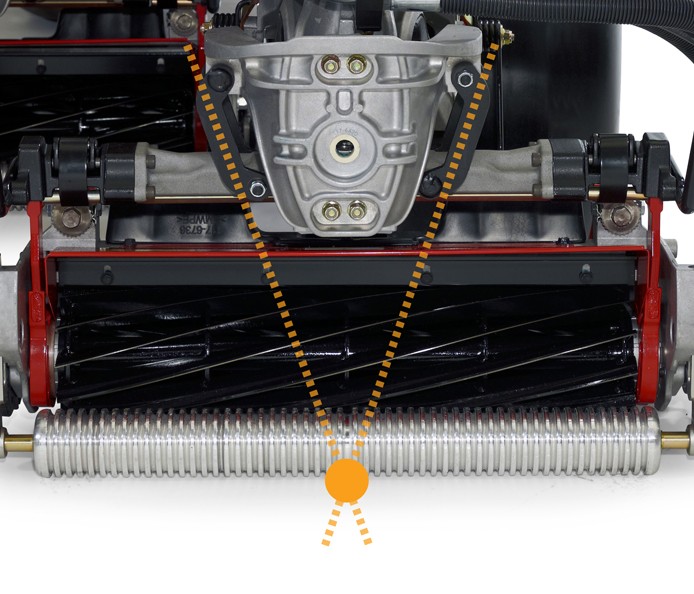

Proven Flex Suspension (Patented)

Proven Flex Suspension (Patented)

Superior contour following capability utilises an integrated "Flex" linkage system to allow cutting units to pivot around the centre of the front roller to master undulations and prevent side-to-side scrubbing of the playing surface.

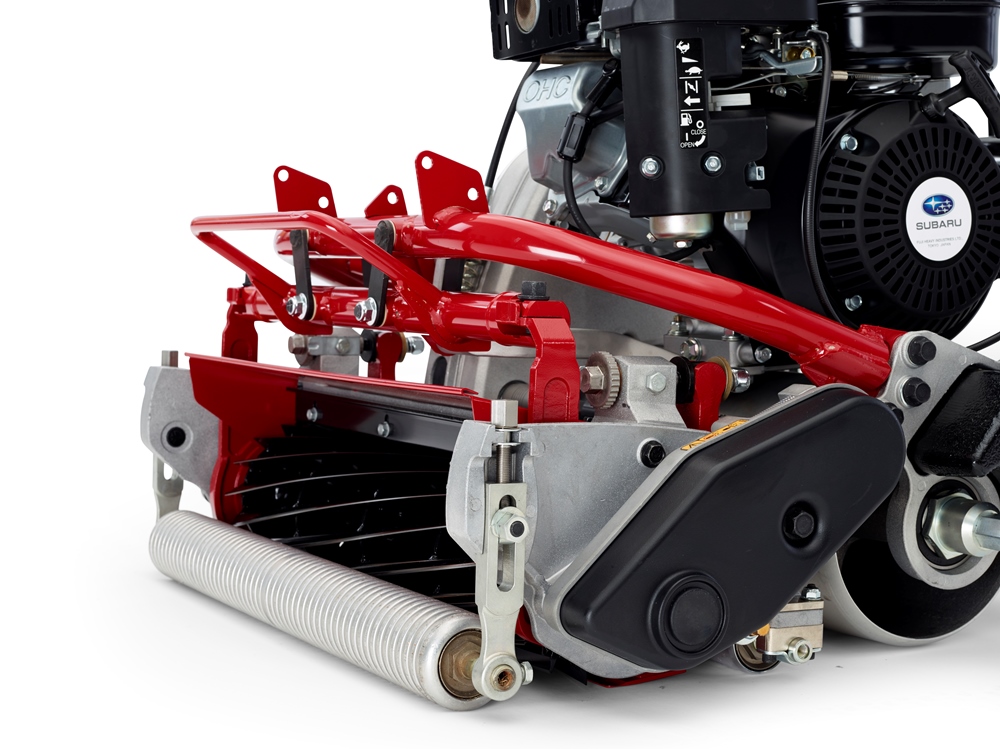

Built-in Clip Adjustments

Built-in Clip Adjustments

Each Flex walker includes six - easy to configure - clip rate options to accommodate specific cutting heights and playability requirements for every event or desired playing condition. Three color-coded pulleys can quickly be rearranged, with a single wrench, to match your reels and clip rates to achieve the desired result.

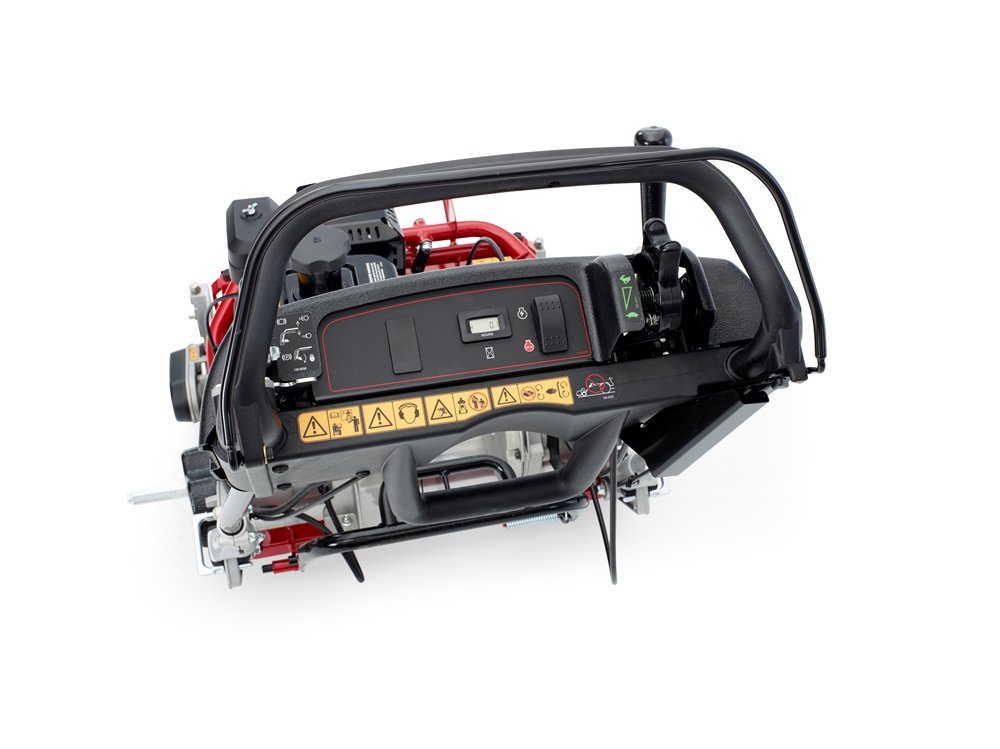

Thumb Wheel Traction Control

Thumb Wheel Traction Control

Fingertip access to thumb-wheel traction speed controller allows operators to concentrate on mowing instead of reaching for awkward throttle control levers or electronic dials.

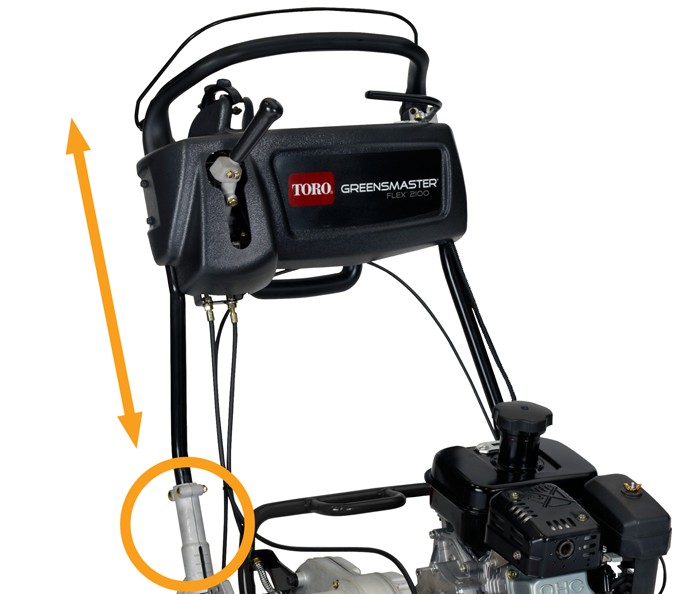

Adjustable - Telescoping Handle

Adjustable - Telescoping Handle

The telescoping handle can be adjusted up or down for enhanced operator comfort and to accommodate tall or short operators.

Simple and Reliable Transmission

Simple and Reliable Transmission

A single, belt drive transmission is simple and reliable delivering a consistent cut.

No Grease Points

No Grease Points

No grease points means less time spent on routine maintenance tasks and no more worry about grease "blurbs" on your turf.

Engine

4.3 HP (3.2 kW) Subaru® Heavy-Duty Industrial, 4-cycle

Cutting Width

53.3 cm

Fuel Capacity

3 litres

Transport Speed

9.2 km/h

Mowing Speed

2.5-5.9 km/h

Transmission

Engine powered multi-disk clutch to the first stage of a multi-ribbed poly-V belt drive. The traction drums are belt driven through a spur gear planetary differential with integral band style service/parking brake.

Height of Cut

1.59-7.54 mm

Controls

Engine Controls: Recoil starter, choke, fuel shut-off.
Handle Controls: on/off (‘ignition’) switch, hour meter, throttle, dual function traction/reel control lever, operator presence control, service/park brake lever, on/off light switch (optional blank slot in console).

Reel Construction

8-Blade Reel: 12.7 cm diameter, 8 high carbon steel blades welded to 5 steel spiders.
11-Blade Reel: 12.7 cm diameter, 11 high carbon steel blades welded to 5 steel spiders.
14-Blade Reel: 12.7 cm diameter, 14 high carbon steel blades welded to 5 steel spiders.

Reel Drive

Transmission reel clutch shaft to a drive shaft with a pair of beam style couplers.

Weight

118 kg with basket, without transport tyres and groomer.

Warranty

2 years limited warranty. Refer to operator’s manual for further details.

Download Type Information
Toro Greensmaster® Flex™ 2120 Brochure
Toro EdgeSeries™ Reels Brochure
