Groundsmaster® 360 Quad-Steer™ 2WD (31230)


The Toro® Groundsmaster® 360 Quad-Steer™ 2WD reinvents the way a mower performs. Powered by a 36 hp (26.8 kW) Kubota® 4-cylinder diesel engine, this machine utilises revolutionary Quad-Steer™ all wheel steering to maximise productivity. Climb hills without slipping. Make 180° turns without tearing turf. Hug the turns or side hills while mowing in total comfort.
Groundsmaster® 360 Quad-Steer™ 2WD model can be configured with one of the following decks:
- 152.4 cm side discharge
- 157.5 cm base deck with Guardian® Recycler® deck
- 183 cm side discharge
- 183 cm base deck which can be set up as either a rear discharge deck or Guardian® Recycler® deck.
- 254 cm rear discharge deck

All-Wheel Steering
The Groundsmaster® 360 features Quad-Steer™, true, all-wheel steering to achieve unmatched manoeuvrability, control and performance. This is the most innovative steering geometry ever offered in a cutting machine. We guarantee you've never driven a mower like this before.

Ergonomic Design
Controls placed at your fingertips, exceptional line of sight forward, to the sides and rear-ward and comfortable seating.The Groundmaster® 360 is designed with optimal operator comfort in mind. Even after hours of driving, you won't want to quit.

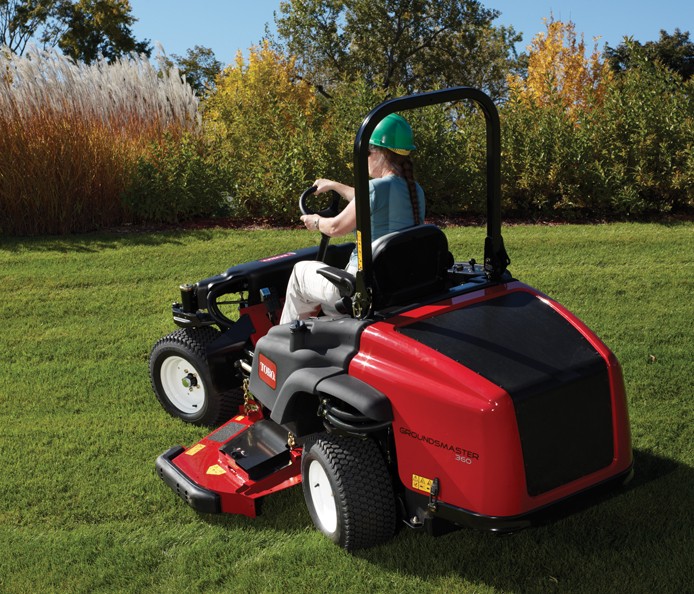

Great Traction, No Turf Tear
A wider track, combined with a hydrostatic drive system offers exceptional stability and control, even on hillsides. With the Groundsmaster® 360 there is no turf tearing when making sharp turns. *Always use caution when driving and avoid unsafe terrain.
Engine | Kubota® 1505 4-cylinder, liquid-cooled diesel engine, 36 hp (26.8 kW) @ 3000 rpm. |
Fuel Capacity | 51.1 litres diesel. Biodiesel Ready for use up to B-20 (20% biodiesel and 80% diesel blend). |
Mowing/Transport Speed | Forward: 0-22.5 km/h, variable. Reverse: 0-13.7 km/h, variable. |
Steering | Quad-Steer™ all wheel steer with four wheel Ackermann steering. Two turns Lock to Lock controlled via steering wheel and automatic synchronizing hydraulic cylinders. |
Traction Drive | Dual pump hydrostatic drive system with optional differential lock |
PTO Clutch | Hydraulically actuated wet multi disc clutch |
Dimensions | Height ROPS up: 198 cm |
Weight | 1,162 kg (with 183 cm deck) |
Warranty | 2 years limited warranty. Refer to operator’s manual for further details. |

Guardian® Recycler® - 183 cm Side Discharge Deck
Save time and increase productivity with this patented vertical discharge system.Time-consuming collection and disposal of clippings is completely eliminated. Plus, with no discharge chute, safety is improved.
Download | Type | Information |
---|---|---|
Toro Groundsmaster 360 | Brochure | |
Toro Groundsmaster 360 100 Inch Deck | Brochure |
