Perrot ZN 23 Impact Sprinkler

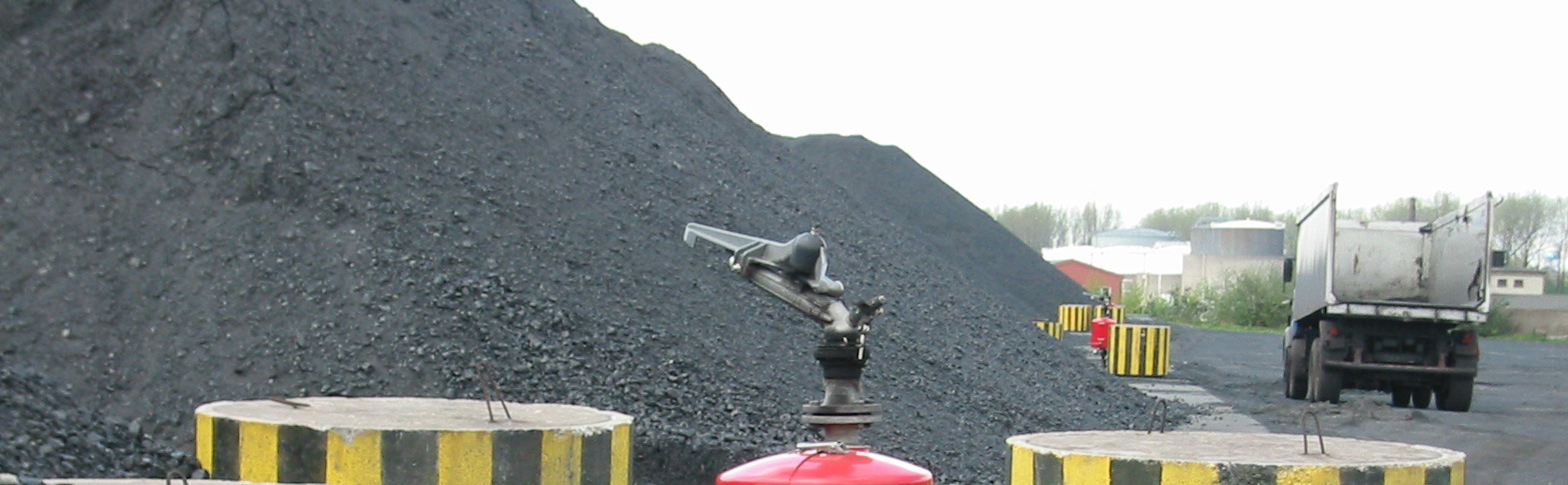

The Perrot ZN 23 impact sprinkler is a long radius sprinkler designed for use in agriculture and dust suppression. Capable of achieving a throw of up to 50.5 m the ZN 23 impact sprinkler is ideal for long radius applications. Solidly constructed the ZN 23 can be adjusted to operate as a full or part circle sprinkler.
Full Circle and Part Circle Operation
ZN 23 can be adjusted to operate both as full and part circle.
30 - 330° - via arc adjustment springs
360° - lift the trip lever or remove the arc stops
Slow Reverse Impact
Designed to return at a slower speed for more even water application.
Protection Cap
Protection cap ensures that the impact arm axle remains clean for trouble free operation.
Adjustable Rotation Speed
Rotation speed of the sprinkler can be adjusted by increasing or decreasing tension on the braking plate.
Solid Construction
Constructed from brass, stainless steel, cast aluminium and engineered plastics.
Perrot ZN 23 Impact Sprinkler
| Applications | Large turf, agriculture and dust suppression |
| Nozzle Sizes | 16, 20 and 24 mm |
| Operating Pressure | 300 - 700 kPa |
| Radius Range | 33.5 - 50.5 m |
| Flow Rate | 262.8 - 903.7 L/Min |
| Trajectory | 23° |
| Inlet | Inlet: 2 1/2” BSPF |
| Download | Type | Information |
|---|---|---|
| Brochure | ||
| Manual | ||
| Perrot ZN 23 Impact Sprinkler | Spare Parts |
