Groundsmaster® 7200 (30495TC)
The Groundsmaster® 7200 zero turn rotary mower is rugged enough to be called a Groundsmaster®. It has powerful Kubota® 24.8 hp (18.6 kW), 3-cylinder, liquid-cooled diesel engine to get the job done well. Durable heavy-duty 7-gauge welded steel deck construction and the industry's toughest spindle assembly provide long life.
Groundsmaster® 7200 model can be configured with one of the following decks:
152.4 cm side discharge deck
157.5 cm base deck which can be set up as either a rear discharge deck or Guardian® Recycler®deck
183 cm side discharge
183 cm base deck which can be set up as either a rear discharge deck or Guardian® Recycler®deck

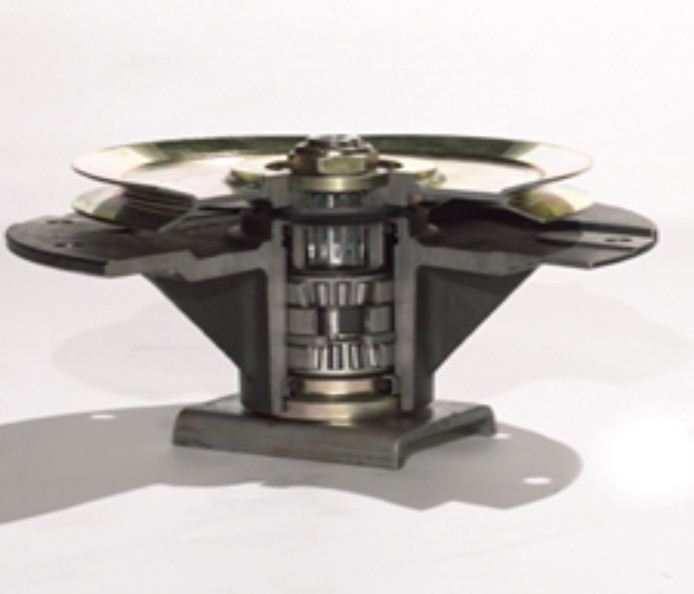

Industry's Toughest Deck and Spindle Assembly
The Groundsmaster® 7200 cutting decks stand up to the rigours of everyday use with high-strength, 7-gauge welded-steel construction that resists cracking. In fact, Toro decks are 33% thicker and 85% stronger than competitive decks made from ordinary 10-gauge steel. The decks also employ heavy-duty spindle assemblies with a 9" (23 cm) diameter base to absorb impacts that would damage most other assemblies.
Direct-Drive Transmission
Coupling the transmission directly to the engine eliminates drive belts and creates an efficient and robust powertrain system that requires less maintenance and service.
Bull-Nose Bumper
This unique design provides durablity and minimises blowout of grass and dust. The leading edge is raised 6.4 mm so grass stands up straight for a cleaner cut.
60" (152.4 cm) & 72" (183 cm) Side Discharge Deck
A blade tip speed of 18,000 ft/min assures a cleaner cut without sacrificing mowing speed. The patent-pending rubber discharge deflector disperses clippings evenly while protecting trees and other objects from damage.
62" (157.5 cm) & 72" (183 cm) Rear Discharge or Guardian® Recycler® Deck
The patented vertical discharge system offers improved safety and clipping management by forcing the clippings to be cut and re-cut.
Quick Attach System™ (QAS)
The exclusive Toro QAS allows switches between attachments in less than a minute without tools.
Deluxe Suspension Seat
The new air-ride seat suspension glides over the bumps improving operator comfort and reduces operator fatigue when mowing for a prolonged period.
All-day Comfort and Maximised Productivity
The ideal choice for productivity and operator comfort. It’s capable of a 20 km/h mow/transport speed and the 43.5 litres fuel tank is large enough for a full day of mowing. The hydraulic deck lift, zero-turn stick operation, deluxe suspension seat and cup holder ensure operator comfort and reduce fatigue.

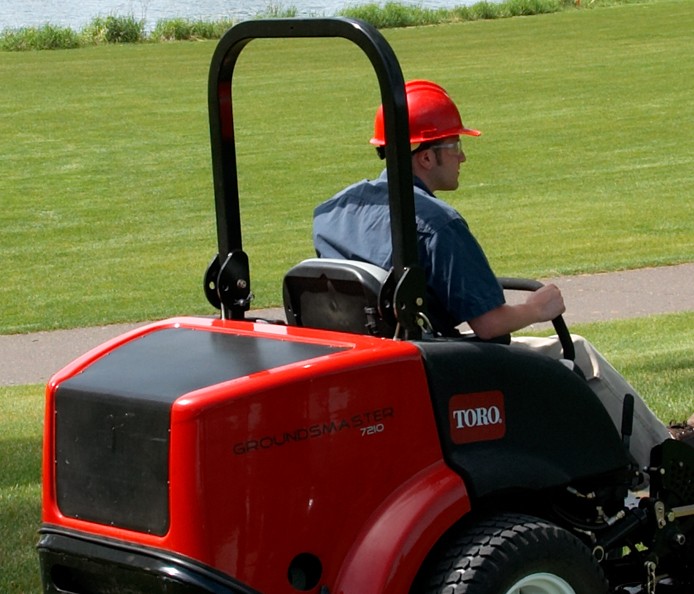

Folding Rollover Protection System (ROPS)
A Rollover Protection System (ROPS), complete with seat belt, comes standard for operator protection in the case of accidental rollovers and tipovers. In situations where sufficient vertical clearance is not available, such as loading on an enclosed trailer, the ROPS can be temporarily unlocked and folded down.
| Engine | 24.8 hp (18.6 kW) Kubota® 3-cylinder, liquid-cooled diesel 1,123 cc |
| Cutting Width | 152.4 cm, 157.5 cm, 183 cm |
| Deck Material | 7-gauge welded steel |
| Deck Type | Side discharge adjustable baffle, Rear discharge or Guardian® Recycler |
| Fuel Capacity | 43.5 litres |
| Maximum Forward Speed | 20 km/h |
| Height of Cut | 1" - 6" adjustable in 0.25" increments |
| Drive Tyres | 24" x 12" - 12", 6-ply pneumatic tubeless, demountable and interchangeable |
| Caster Tyres | 15" x 6" - 6", 4-ply ribbed tread, tubeless |
| Spindle Housing | 9" cast based |
| Spindle Bearings | Premium greasable tapered roller bearings |
| Weight** | Approx. 862 kg **Weight may vary depending on deck configuration. |
| Warranty | 2 years/1500 hours limited warranty. Refer to operator’s manual for further details. |
Road Light Kit
Road Light Kit includes headlights, red/amber flashers and turn signals.
Universal Mount Sunshade, White
Stay cool and productive when mowing with a canopy.
Jack Stand Kit
Raises mower approximately 18" (45.7 cm) to access underside of mower deck for blade change or cleaning.
Rear Quick Attach System™ (QAS)
With the QAS, anyone can switch from one attachment to another in less than a minute, with no tools required!
