60" (152.4 cm) Z Master® Commercial 3000 Series with MyRIDE® Suspension System (75936)

60" (152.4 cm) Z Master® Commercial 3000 Series with MyRIDE® Suspension System (75936)
60" (152.4 cm) Z Master® Commercial 3000 Series with MyRIDE® Suspension System (75936)


Long days will feel shorter with the all-new, amazingly comfortable MyRIDE® suspension system on Toro® Z Master® Commercial 3000 Series 60 inch mower. The fully suspended, adjustable operator platform isolates bumps and vibrations so you don’t feel the rough terrain. It’s the Toro toughness you expect with a ride you won’t believe.

This 152.4 cm Commercial 3000 series model features a 25.5 hp Kawasaki® FX801V engine, TURBO FORCE® deck and our patented adjustable discharge chute. The unitized pump and wheel motor uses proven commercial hydraulic components while eliminating hoses and other potential leak points.

2016 model year shown

Maximum Comfort

Maximum Comfort

MyRIDE® Suspension System features a fully suspended operator platform that allows for 3.6" of travel and reduces impacts, bumps and vibrations that reach the operator, resulting in a superior ride.

 Personalised Ride Settings

Personalised Ride Settings

The operator can easily and quickly adjust their ride settings to account for their personal ride preferences, without the use of tools!

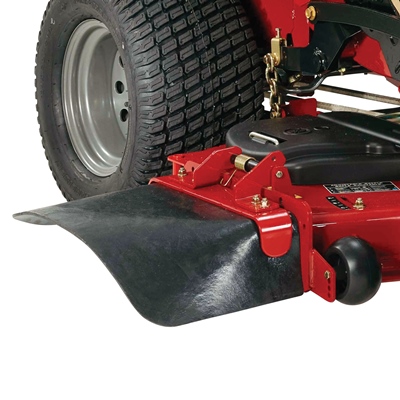

TURBO FORCE® Deck

TURBO FORCE® Deck

Rugged, 7-gauge high-strength steel deck constructed to handle extreme conditions, delivering the ultimate in cutting performance.

Industry's Toughest Spindle Assemblies

Industry's Toughest Spindle Assemblies

Toro's rugged spindle assemblies survive impacts that would destroy lesser spindles. A stout cast iron housing with a massive base and six mounting bolts absorbs impact loads and distributes them across a broader area of the deck shell. Plus, the solid, one-inch diameter shaft is alloy steel.

High-Strength Blades

High-Strength Blades

High-lift, flex-resistant, 0.63 cm thick blades are made of heat-treated steel for maximum durability and an outstanding cut every time.

Unitised Pump and Wheel Motor with Cooling Fans

Unitised Pump and Wheel Motor with Cooling Fans

The new unitised pump and wheel motor use proven commercial hydraulic components while eliminating hoses and other potential leak points. You'll get a smoother, faster response while enjoying an even more reliable machine.

Roll Over Protection System (ROPS)

Roll Over Protection System (ROPS)

A Rollover Protection System (ROPS), complete with seat belt, comes standard for operator protection in the case of accidental rollovers and tipovers. In situations where sufficient vertical clearance is not available, such as loading on an enclosed trailer, the ROPS can be temporarily unlocked and folded down.

Operator Information Center

Operator Information Center

The instrument panel includes a digital hour meter, fuel gauge and voltage meter, as well as diagnostic indicators for the safety interlock system.

Z Master® with MyRIDE™ Suspension System

Z Master® with MyRIDE™ Suspension System

Built for maximum comfort, the innovative MyRIDE® suspension system features a fully suspended operator platform isolates the operator from the rest of the machine. This design reduces impacts, bumps and vibrations for a more comfortable ride.

Engine

25.5 hp (19 kW) Kawasaki® V-Twin FX801V 852 cc

Cutting Width

152.4 cm

Drive Tyres

24" x 12" - 12" Turf Master

Caster Tyres

13" x 6.5" - 6", smooth tread, pneumatic

Fuel Capacity

30.3 litres

Maximum Forward Speed

16.1 km/h

Deck Material

TURBO FORCE® 7-gauge high-strength steel with bull-nose front bumper

Height of Cut

1.0" - 5.5" in 0.25" increments

Deck Type

Side discharge tools adjustable baffle

Rubber Discharge Chute

Standard

MyRIDE® Suspension System

Comfort platform: MyRIDE® suspension system
Platform Travel: 3.6"
Shocks: 1 front / 2 rear
ISO Mounts: Qty 4, 2.5" 3-D isolation mounts
Seat: Deluxe seat with padded armrests
Adjustability: 5 point adjustment on rear shocks

Spindle Housing

22.9 cm diameter cast iron

Spindle Bearings

Maintenance-free ball bearings

Blades

0.6 cm heat-treated steel

Blade Tip Speed

18,500+ ft/min

Carrier Frame Construction

3" x 1.5" x 10 gauge

Warranty*

5 years/1200 hours limited warranty and 5 years/1200 hours spindle limited warranty

*See your certified Toro dealer for full details on warranties.
