60" (152.4 cm) Z Master® Commercial 3000 (74950)

60" (152.4 cm) Z Master® Commercial 3000 (74950)
60" (152.4 cm) Z Master® Commercial 3000 (74950)


The Z Master® Commercial 3000 Series offers the perfect blend of performance, durability and value. This 152.4 cm (60 inch) model features Toro’s exclusive TURBO FORCE® cutting deck, robust cast iron spindle housings with solid 2.5 cm (1 inch) steel spindle shafts and 12 cc unitised pump and wheel motor transmissions with cooling fans for professional results and dependability.

The deluxe suspension seat (available from model year 2017) features thick cushions, large bolsters and 3-D isolator mounts that absorb bumps and vibrations to reduce operator fatigue.

 2016 model year shown

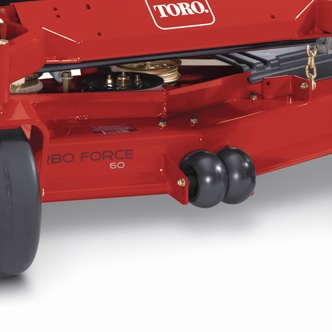

Exclusive TURBO FORCE® Deck

Exclusive TURBO FORCE® Deck

Rugged, 7-gauge high-strength steel deck constructed to handle extreme conditions, delivering the ultimate in cutting performance.

Maintenance-Free Tough Spindle Assemblies

Maintenance-Free Tough Spindle Assemblies

A robust cast iron housing with a solid 1 inch steel spindle shaft absorbs impact loads and distributes them across a broader area of the deck shell.

Twin Unitised Pump and Wheel Motor Transmissions with Cooling Fans

Twin Unitised Pump and Wheel Motor Transmissions with Cooling Fans

Proven commercial hydraulic components while eliminating hoses and other potential leak points. You’ll get a smoother, faster response while enjoying an even more reliable machine. The transmissions are equipped with cooling fans.

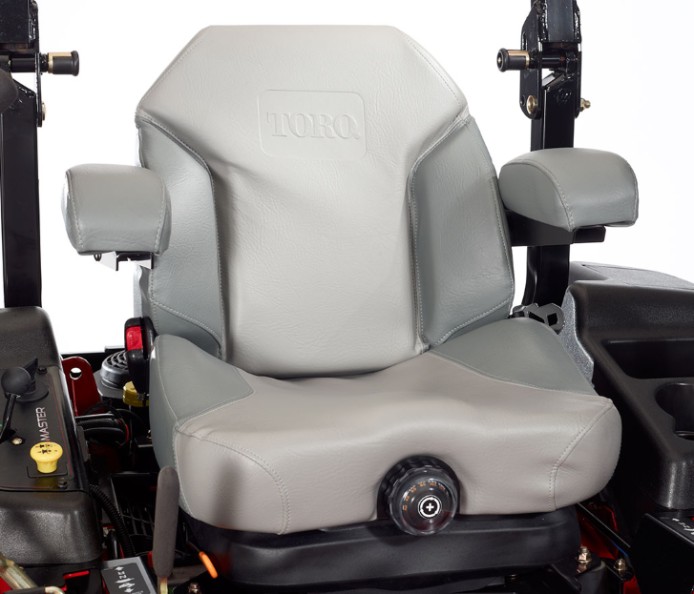

Deluxe Suspension Seat

Deluxe Suspension Seat

 Deluxe suspension seat features thick cushions, large bolsters and 3-D isolator mounts that absorb bumps and vibrations to reduce operator fatigue.

Traction and Performance

Traction and Performance

Industry-leading traction and control - low centre of gravity enhances hillside traction and stability for superior handling on hills.

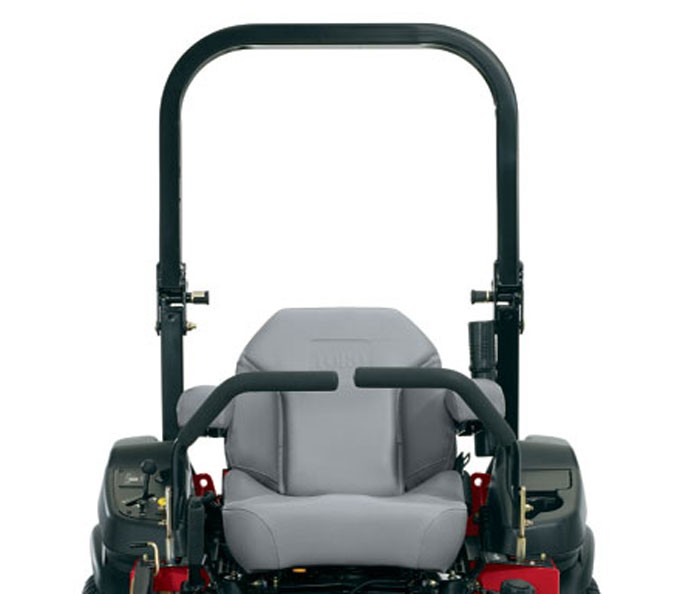

Folding Rollover Protection System

Folding Rollover Protection System

A Rollover Protection System (ROPS), complete with seat belt, comes standard for operator protection in the case of accidental rollovers and tipovers. In situations where sufficient vertical clearance is not available, such as loading on an enclosed trailer, the ROPS can be temporarily unlocked and folded down.

Engine

25.5 hp (19 kW) Kawasaki® V-Twin FX801V 852 cc

Cutting Width

152.4 cm

Drive Tyres

 24" x 12" - 12" Turf Master

Caster Tyres

13" x 5" - 6", smooth tread, pneumatic.

Fuel Capacity

30.3 litres

Maximum Forward Speed

16.1 km/h

Deck Material

TURBO FORCE® 7-gauge high-strength steel with bull-nose front bumper

Height of Cut

1.0" - 5.5"

Deck Type

Side discharge tools adjustable baffle

Rubber Discharge Chute

Standard

Spindle Housing

9" diameter cast iron

Spindle Bearings

Maintenance-free ball bearings

Blades

0.6 cm thick heat-treated steel

Blade Tip Speed

18,500+ ft/min

Carrier Frame Construction

3" x 1.5" x 10 gauge

Warranty*

5 years/1200 hours limited warranty and 5 years/1200 hours spindle limited warranty

*See your certified Toro dealer for full details on warranties.
