48" (121.9 cm) Z Master® Commercial 3000 (74952)

48" (121.9 cm) Z Master® Commercial 3000 (74952)
48" (121.9 cm) Z Master® Commercial 3000 (74952)


The Z Master® Commercial 3000 Series offers the perfect blend of performance, durability and value. This 121.9 cm (48 inch) model features Toro’s exclusive TURBO FORCE® cutting deck, robust cast iron spindle housings with solid 2.5 cm (1 inch) steel spindle shafts and 12 cc unitised pump and wheel motor transmissions for professional results and dependability.

The deluxe suspension seat (available from model year 2017) features thick cushions, large bolsters and 3-D isolator mounts that absorb bumps and vibrations to reduce operator fatigue.

74950 model shown (2016 model year)

Exclusive TURBO FORCE® Deck

Exclusive TURBO FORCE® Deck

Rugged, 7-gauge high-strength steel deck constructed to handle extreme conditions, delivering the ultimate in cutting performance.

Maintenance-Free Tough Spindle Assemblies

Maintenance-Free Tough Spindle Assemblies

A robust cast iron housing with a solid 1 inch steel spindle shaft absorbs impact loads and distributes them across a broader area of the deck shell.

Twin Unitised Pump and Wheel Motor Transmissions

Twin Unitised Pump and Wheel Motor Transmissions

Proven commercial hydraulic components while eliminating hoses and other potential leak points. You’ll get a smoother, faster response while enjoying an even more reliable machine.

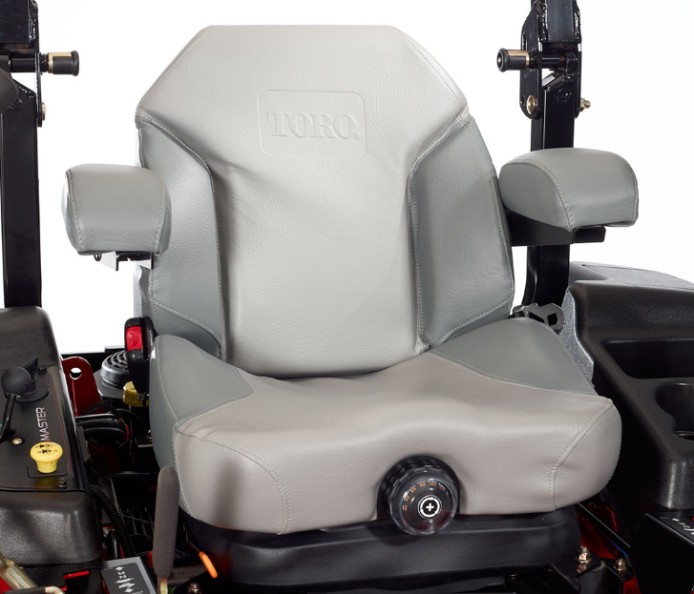

Deluxe Suspension Seat

Deluxe Suspension Seat

Deluxe suspension seat features thick cushions, large bolsters and 3-D isolator mounts that absorb bumps and vibrations to reduce operator fatigue.

Instrument Panel

Instrument Panel

The easy to see instrument panel includes a digital hour meter, fuel gauge, voltage meter and diagnostics indicators for troubleshooting at a glance.

Traction and Performance

Traction and Performance

Industry-leading traction and control - low centre of gravity enhances hillside traction and stability for superior handling on hills.

Folding Rollover Protection System

Folding Rollover Protection System

A Rollover Protection System (ROPS), complete with seat belt, comes standard for operator protection in the case of accidental rollovers and tipovers. In situations where sufficient vertical clearance is not available, such as loading on an enclosed trailer, the ROPS can be temporarily unlocked and folded down.

Rugged Frame

Rugged Frame

A commercial-grade carrier frame, constructed of 3" x 1.5" tubular steel, supports the cutting deck and stands up to the rigors of professional use.

Rubber Discharge Chute

Rubber Discharge Chute

High performance rubber discharge chute allows for close trimming without damaging chute or landscape structures. Patented design provides exceptional clipping dispersion.

Engine

20.5 hp (15.3 kW) Kawasaki® V-Twin FX651V 726 cc

Cutting Width

121.9 cm

Drive Tyres

23" x 9.5" - 12" Turf Master

Caster Tyres

13" x 5" - 6", pneumatic.

Fuel Capacity

30.3 Litres

Maximum Forward Speed

13.6 km/h

Deck Material

TURBO FORCE® 7-gauge high-strength steel with bull-nose front bumper

Height of Cut

1.0" - 5.5" (2.54 cm – 14 cm) with 0.25" (0.64 cm) increments

Deck Type

Side discharge tools adjustable baffle

Rubber Discharge Chute

Standard

Spindle Housing

9" diameter cast iron

Spindle Bearings

Maintenance-free ball bearings

Blades

0.6 cm thick heat-treated steel

Blade Tip Speed

18,300+ ft/min

Carrier Frame Construction

3" x 1.5" x 10 gauge

Warranty*

5 years/1200 hours limited warranty and 5 years/1200 hours spindle limited warranty

*See your certified Toro dealer for full details on warranties.
